The Orders

The Orders page allows you to view orders saved in the database (on the map and table), as well as create new ones, edit or delete already saved orders.

The List of Orders

A tabular summary of all orders, contains information such as:

tracking number - tracking number, user defined identifier, possibly copied from external system
status - current status of the order. Possible options are: To be assigned/Assigned/En route/Delivered/Pickup failed/Delivery failed
pick up location - order pickup address
pick up time - date and time window in which the order should be received
drop off location - delivery address of the order
drop off time - date and time window in which the order should be delivered delivered
order size - package size in abstract units defined by the customer. hese are units that users can interpret on one's own, depending on the one's business. It can represent (for example) litters, pallets, kilograms, boxes or people - depending on what is to be transported.
priority - order priority (high/medium/low)

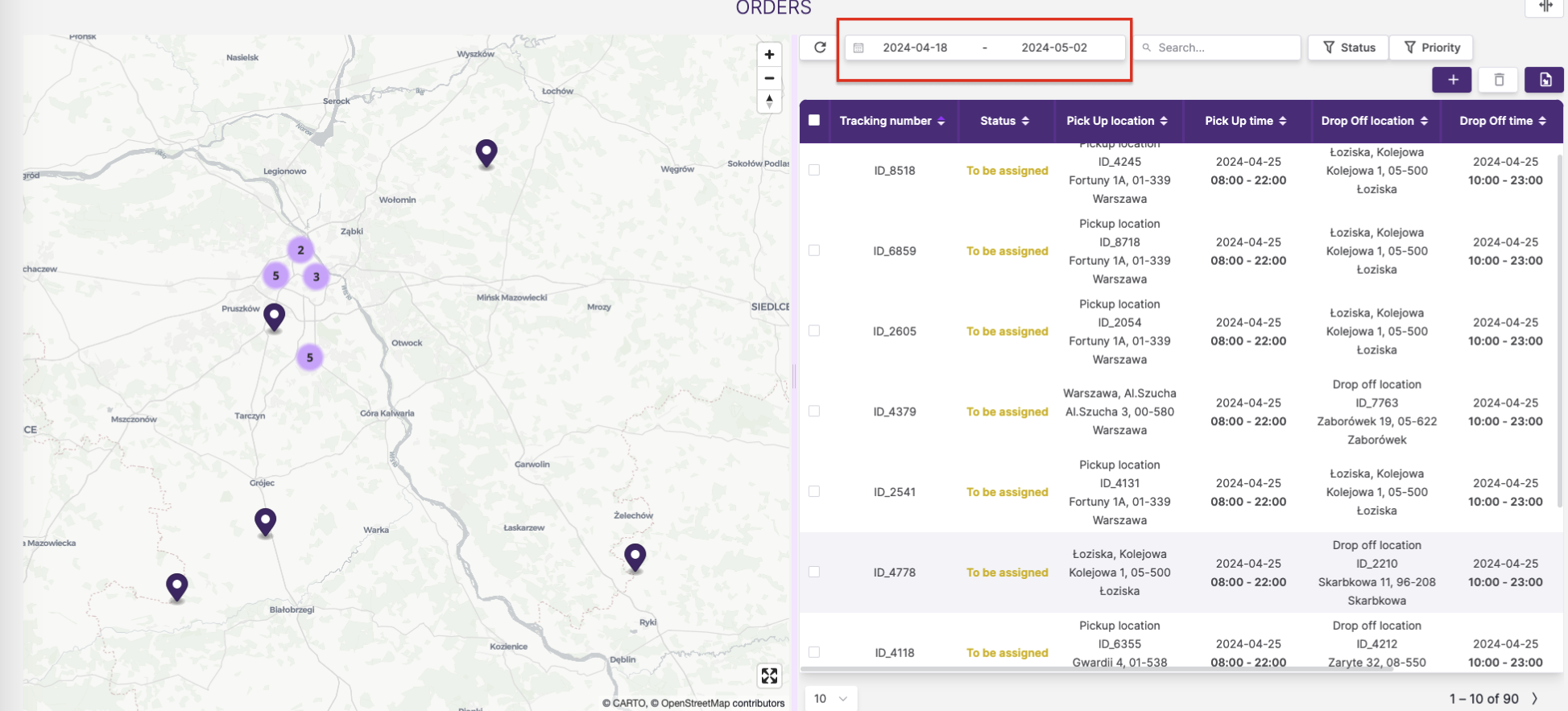

Orders-table

Data filtering and searching

The user can search/filter orders using:

Search: search text filter is looking for matching text in external id, sender and receiver names, pick up and drop off locations.,
Date of pickup/drop off of the order or time period : By default, To limit a size of the table for the start system, we set date range filter to +/- 7 days from today.
Status: Possible options to filter orders status are:To be assigned, Assigned, En route, Delivered, Pickup failed, Delivery failed
Priority : Possible options to filter orders priority are: High, Low, Medium

Adding orders

The module allows you to add orders directly in two ways:

the form in the user panel,
import from .csv file

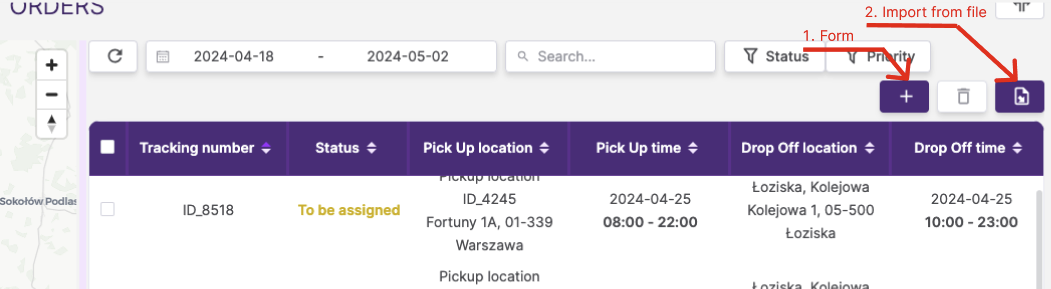

Buttons for adding orders are located in the upper right corner, above the table with orders

1. The Order Submission Form from User Panel

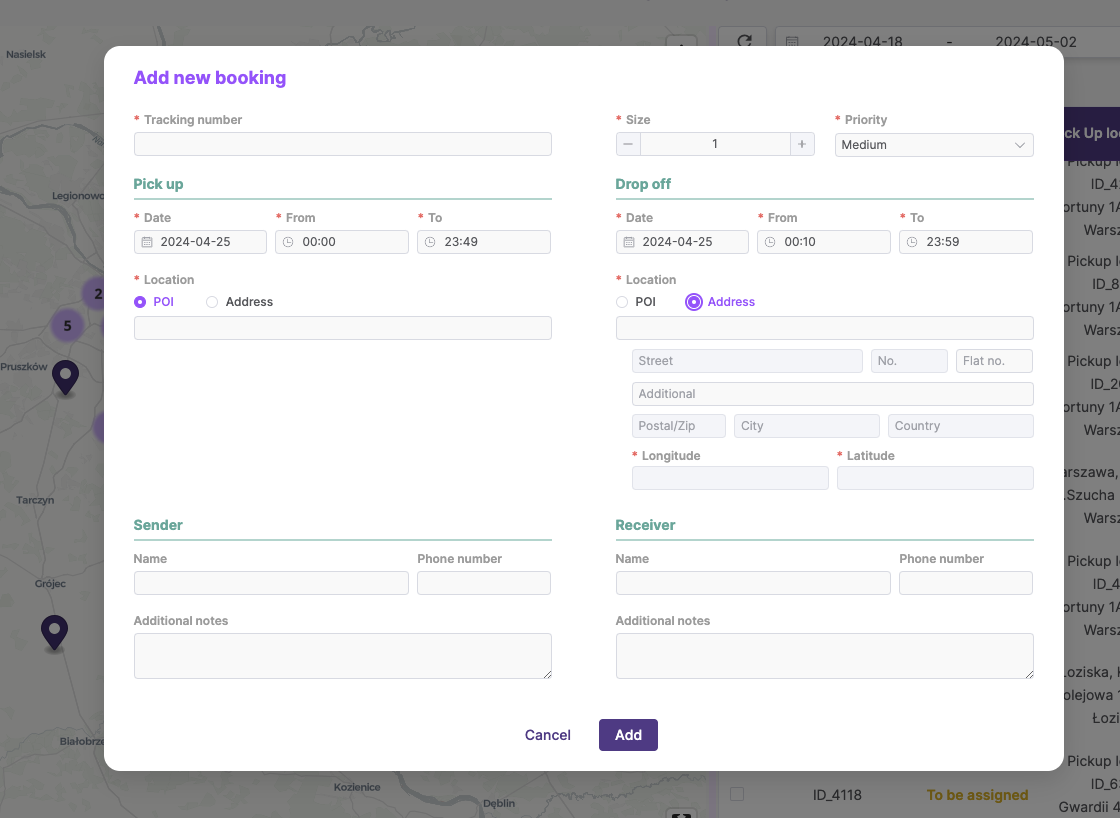

After clicking the button marked No. 1 in Figure 2 (+), it will display a form for creating a new transport order.

Add order

Through the form, the user defines such obligatory order parameters as:

tracking number - tracking number, user defined identifier, possibly copied from external system.
size- declared size in units defined by the customer (kg, pallet, people, etc.)
priority - priority of the order, possible options to choose from: high, medium, low
date and time window - date and hourly time window (from-to) in which the pickup/drop off is to take place
address - place of delivery and pick up

The user can define the order pickup/drop off address as:

any address (we use Google geocoding Geocoding API)
POI (point of interest) - previously declared points uploaded to the database special: warehouses, shops, etc.

Moreover, via the form, the user can also specify additional, optional parameters of the order, such as:

sender/receiver name- user-defined name of the recipient/supplier
phone number - contact telephone number of the sender/recipient
additional notes - additional information about the sender/recipient

2. Import from the file

Importing orders from a file is a mechanism that allows you to quickly save a large amount of data from a file.

2.1 Order import template

❗ Download the Orders Import Template in CSV format: orders.csv ❗

Follow these steps to import orders:

Download the CSV import template.
Open the CSV file in a program like Microsoft Excel or Google Sheets.
Enter your details:

Add new items in the columns listed in Table 1.
Make sure the headers match Table 1; otherwise, the import will fail.
Fill in required fields specified in Table 1 data type (String,Int etc.); importing won't be possible without them.

After adding your data, save the file in CSV format, following the guidelines in sections B and C.

B. CSV file - general requirements

Import only works with CSV files.
Use semicolon ( ; ) as the separator and UTF-8 encoding.
Headers must match Table 1 and the template; otherwise, import will fail.
Each order should occupy one line.

C. CSV file - detailed requirements

Refer to Table 1 for obligatory header names, data types, required fields, and descriptions.

Table 1. Scope of data to import

Header	Data type	Required?	Description
externalId	String	Yes	Customer-defined job ID
sizeU	Int	Yes	Package size in customer-defined units (kg, pallet, person, etc.)
priority	String	Yes	Parcel priority. Available values to choose from: MANDATORY, HIGH, MEDIUM, LOW
pickup_address_postalCode	String	Yes	Order pick up address: postal code
pickup_address_city	String	Yes	Order pick up address: city/village name
pickup_address_street	String	Yes	Order pick up address: street
pickup_address_streetNumber	String	Yes	Order pick up address: street number
pickup_address_flatNumber	String	No	Order pick up address: apartment number
pickup_address_additional	String	No	Order pick up address: additional information
pickup_address_country	String	Yes	Order pick up address: country
pickup_position_lat	Float	Yes	Order pickup address: latitude of the pickup point
pickup_position_lon	Float	Yes	Order pickup address: longitude of the pickup point
pickup_timeWindow_start	String	Yes	Order receipt: beginning of the time window
pickup_timeWindow_end	String	Yes	Order receipt: end of time window
pickup_name	String	No	Order pick up: name of the pick up point declared by the customer
pickup_phone	String	No	Order pick up: telephone
pickup_notes	String	No	Order pick up: additional information
dropoff_address_postalCode	String	Yes	Order delivery address: postal code
dropoff_address_city	String	Yes	Order delivery address: city
dropoff_address_street	String	Yes	Order delivery address: street name
dropoff_address_streetNumber	String	Yes	Order delivery address: street number
dropoff_address_flatNumber	String	No	Order delivery address: apartment number
dropoff_address_additional	String	No	Order delivery address: additional information
dropoff_address_country	String	Yes	Order delivery address: country
dropoff_position_lat	Float	Yes	Order delivery address: latitude of the delivery point
dropoff_position_lon	Float	Yes	Order delivery address: longitude of the delivery point
dropoff_timeWindow_start	String	Yes	Order delivery: start of time window
dropoff_timeWindow_end	String	Yes	Order delivery: end of time window
dropoff_name	String	No	Order delivery: name of the pick up point declared by the customer
dropoff_phone	String	No	Order delivery: telephone
dropoff_notes	String	No	Order delivery: additional information

2.1. Order import process

After clicking the below button, the user will be redirected to a page with a file import form. import btn

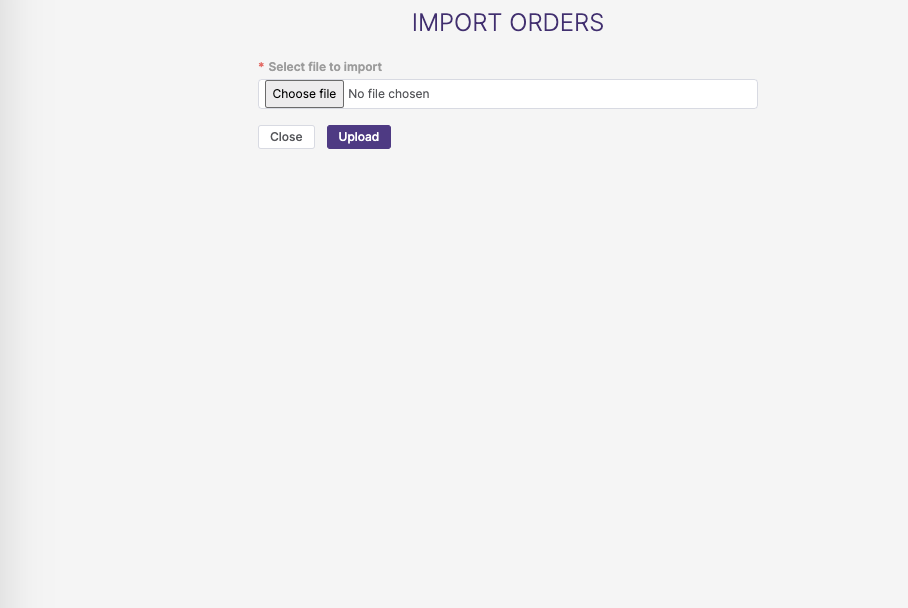

Adding orders - form for importing orders from a file Import of orders

To import a file, follow these steps:

Select the .csv file and confirm your selection with the Upload button.

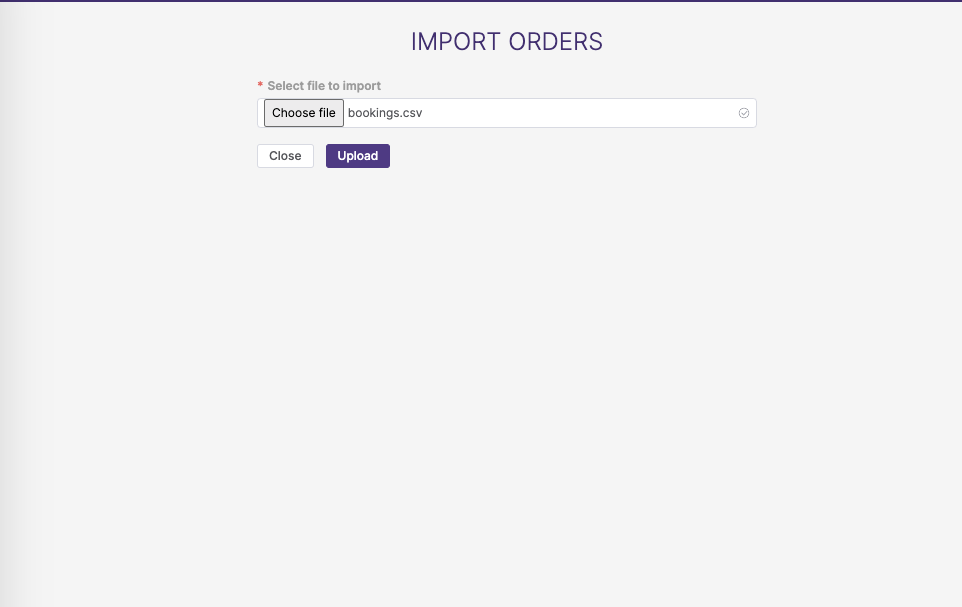

Import of orders - upload

A preview of the orders you intend to upload will be displayed on the screen

If the imported data is correct, confirm the import with the Create button
If, after importing the file, you would like to correct some data, click the Back button, modify the relevant data in the file (e.g. in Microsoft Excel®), and then import the file again.

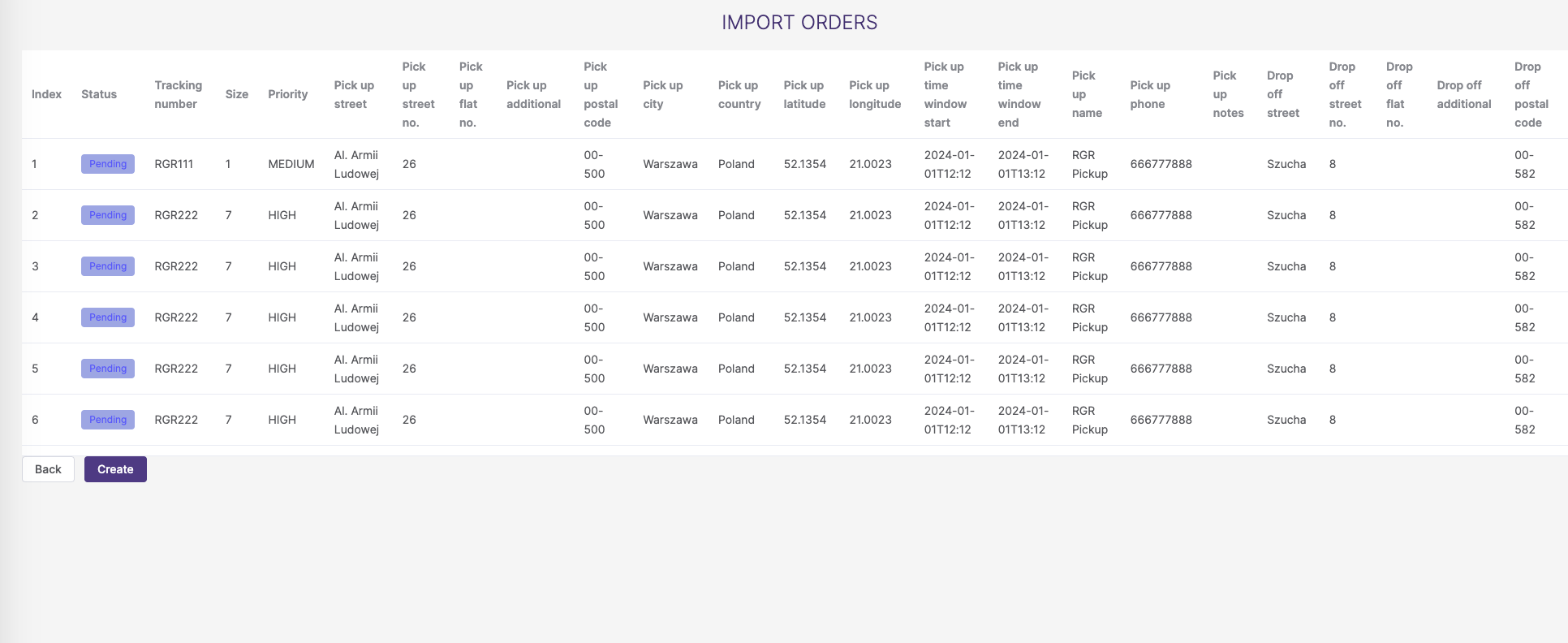

Import orders - preview

Information about the number of correctly imported orders will be displayed on the screen

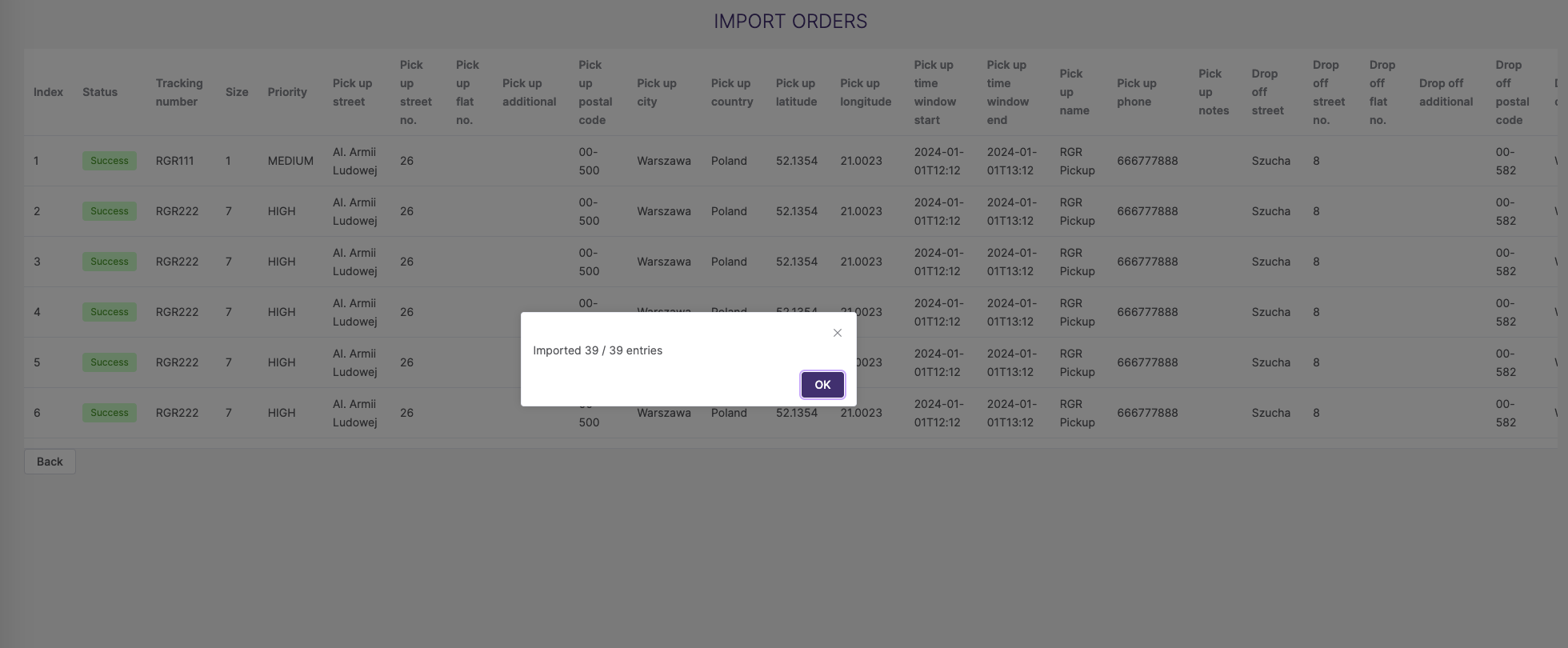

Import orders - success

Deleting orders

The user can delete one or several orders at the same time.

❗ **The _Remove* button only becomes active after selecting orders** ❗!

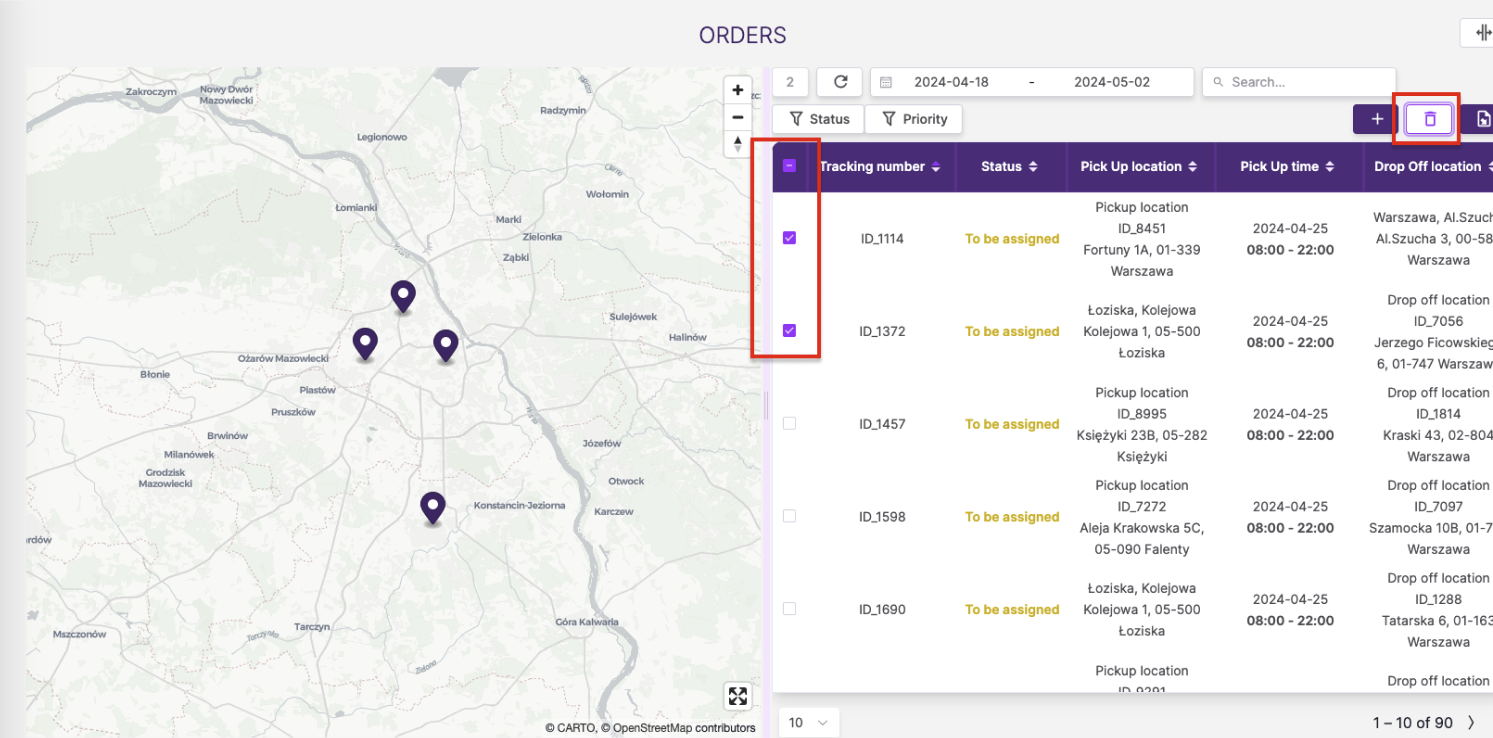

Delete order

After selecting the orders to be deleted, a confirmation message will be displayed. After accepted, the selected orders will be permanently deleted from the database.

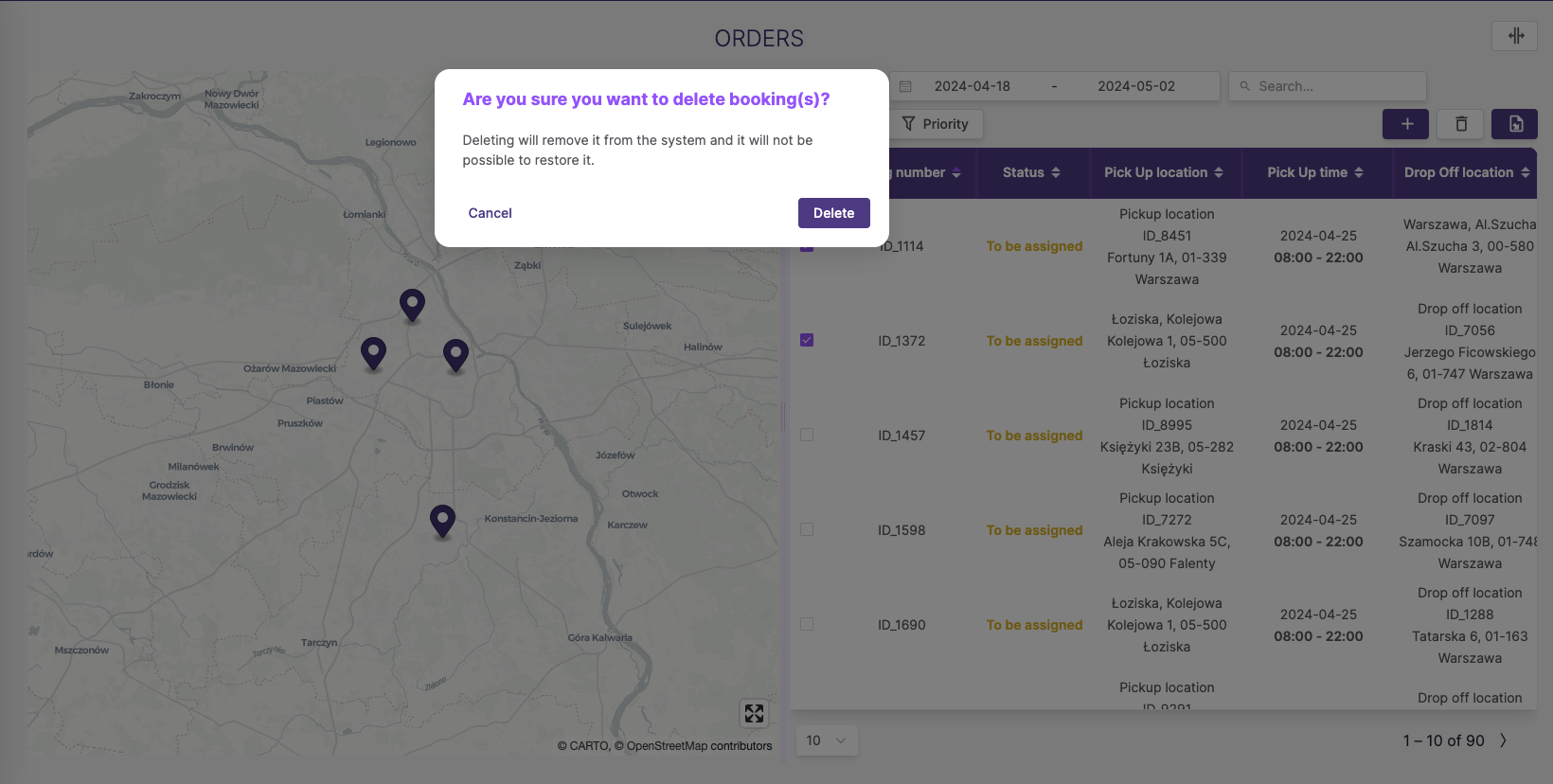

Delete order confirmation
